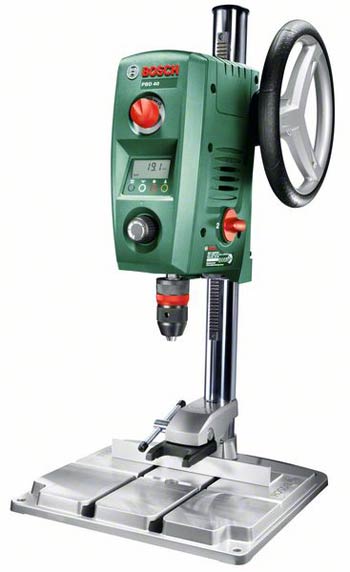

Bosch Bench Drill
PBD 40
The Bosch bench drill for maximum precision and ease of use. As a benchtop tool it is always quickly ready for operation, and it is an essential part of any ambitious do-it-yourselfers workshop thanks to its many intelligent detailed solutions.
The Bench Drill PBD 40 is the convenient way to achieve high precision drill results. Controlled, material-specific speeds can be easily and accurately preset thanks to the electronic speed display and Constant Electronic. The innovative digital display ensures the exact drilling depth can be read easily. Even rows of holes, e.g. for wooden structures, can therefore be drilled without any problems. With 2-speed gearbox high power in 1st gear, high speed in 2nd gear.
Part no. 0603B07070
The high-quality, keyless precision chuck automatically retightens the drill bit. The retaining ring guarantees a perfect hold on the drill bit
Integrated laser to assist with drilling: for easy, precise drilling at exactly the required position. The LED ensures that the work area is well lit
Even round workpieces can be fixed conveniently using the quick-action clamp for an absolutely precise drilling result
The parallel guide and the large work plate ensure accurate and safe positioning of the workpiece
The rotating wheel with integrated softgrip allows for a controlled, comfortable drilling rate
COMPLETE WITH
Parallel guide
Quick-action clamp
TECHNICAL DATA
Power input 710 W
No-load speed (1st gear / 2nd gear) 200 850 / 2.500 rpm
Laser type 2
Max. drilling diameter in steel 13 mm
Max. drilling diameter in wood 40 mm
Chuck jaw width 1,5 13 mm
Drill stroke 90 mm
Base plate dimensions (W x D x H) 330 x 350 x 30 mm
Machine weight 11,2 kg
FUNCTIONS
Laser drilling guide
Integrated work light
NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
The A-rated noise level of the power tool is typically as follows: Sound pressure level 77 dB(A); Sound power level 90 dB(A). Uncertainty K= 3 dB.
|
