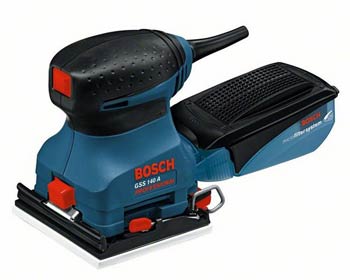

The orbital sanders from Bosch stand for the highest surface quality. Outstanding running smoothness and integrated dust extraction guarantee best work results.

IMPORTANT DATA
• Rated power input - 180 W
• Sanding plate, width - 113 mm
• Sanding plate, length - 105 mm

Part no. 0601297088 (110V version) 0601297090 (240V version)

Every type of sanding sheet sits perfectly with Easy-Fit
• A perfect hold of the paper without creasing and tearing due to Bosch Easy-Fit system – for Velcro-type paper and rolls of paper
• Bosch Microfilter System: perfect, efficient dust extraction
• Ergonomic design with two softgrip surfaces for two grip positions
• Low-vibration for fatigue-free working
• Long lifetime due to sealed ball bearing and the high-quality white sanding plate
• 180 watts for high material removal rate

COMPLETE WITH
• 2 sheets of sanding paper
• Hole punch (ET no. 2 610 920 650)
• Microfilter box (ET no. 2 605 411 203)

TECHNICAL DATA
• Rated power input - 180 W
• No-load speed - 12.000 rpm
• No-load orbital stroke rate - 24.000 opm
• Oscillating circuit diameter - 1,6 mm
• Weight - 1,4 kg
• Length - 249,1 mm
• Width - 113,0 mm
• Height - 146,6 mm
Sanding surface
• Sanding plate, width - 113 mm
• Sanding plate, length - 105 mm
• Sanding sheet for clamping, width - 115 mm
• Sanding sheet for clamping, length - 140 mm
• Sanding sheet with Velcro-type fastening, width - 115 mm
• Sanding sheet with Velcro-type fastening, length - 107 mm

FUNCTIONS
• Velcro-type fastening
• Dust extraction

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 6.5 m/sē
• Uncertainty K - 2.0 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 82 dB(A); Sound power level 93 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
