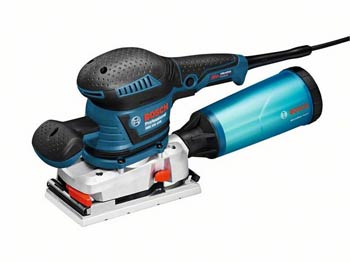

The orbital sanders from Bosch stand for the highest surface quality. Outstanding running smoothness and integrated dust extraction guarantee best work results.

IMPORTANT DATA
• Rated power input - 300 W
• Sanding plate, width - 92 mm
• Sanding plate, length -
• 182 mm

Part no. 0601292860 (110V version) 0601292870 (240V version)

Top-class surface quality and the lowest vibration
• The lowest vibration in its class (<2.5 m/sē) due to decoupled motor housing
• Even distribution of the feed pressure for high surface quality
• A perfect fit for sanding paper, also paper that has no Velcro-type fastening system, due to the new paper tensioning system
• Direct connection of a vacuum cleaner or microfilter dust box for dust-free work in every situation
• Ergonomically designed surfaces with softgrip for perfect handling with or without auxiliary handle
• Speed preselection and 300 watt motor offer power reserves and optimum adjustment to suit the sanding application

COMPLETE WITH
• Auxiliary handle - 2 602 026 175
• L-BOXX 238 - 2 608 438 693
• Microfilter box - 2 605 411 228

TECHNICAL DATA
• Rated power input - 300 W
• No-load speed - 8.000 – 11.000 rpm
• No-load orbital stroke rate - 16.000 – 22.000 opm
• Oscillating circuit diameter - 2,4 mm
• Weight - 2,4 kg
• Length - 415,0 mm
• Width - 92,0 mm
• Height - 205,0 mm
Sanding surface
• Sanding plate, width - 92 mm
• Sanding plate, length - 182 mm
• Sanding surface - 167 cmē
• Sanding sheet for clamping, width - 92 mm
• Sanding sheet for clamping, length - 230 mm
• Sanding sheet with Velcro-type fastening, width - 92 mm
• Sanding sheet with Velcro-type fastening, length - 184 mm

FUNCTIONS
• Velcro-type fastening
• Dust extraction
• Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Uncertainty K - 1.5 m/sē


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
