IMPORTANT DATA
• Rated power input - 850 W
• Planing width - 82 mm
• Adjustable chip thickness - 0 – 4,0 mm

Part no. 060159A764 (110V version) 060159A762 (240V version)

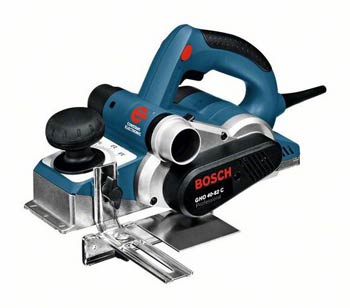

The planer for extremely high surface quality
• The highest surface quality due to ultra-sharp blades and constant speed, even when working in hardwood
• The fastest and least expensive blade changes on the market due to durable Woodrazor reversible blades and the easiest possible adjustment
• The longest lifetime due precise aluminium bearing seat and thermodynamic motor protection
• Easy, precise and clearly legible depth of cut setting
• Comfortable working due to chip clearance to left or right, as desired
• 3 V-grooves for easy and flexible chamfering
• Workpiece is protected thanks to parking rest
• Lock-off switch for left-handers and right-handers
• Planing blade and key depot
• Handle and guide handle with softgrip
• Complete with all accessories (tungsten carbide reversible blade, rebating width guide, rebating depth guide)

COMPLETE WITH
• Additional blade - 2 608 635 376
• Carrying case - 2 605 438 567
• Dust bag - 2 605 411 035
• Parallel guide - 2 607 000 102
• Rebating depth guide - 1 608 132 006

TECHNICAL DATA
• Rated power input - 850 W
• Adjustable chip thickness - 0 – 4,0 mm
• Weight - 3,2 kg
• Adjustable rebating depth - 0 – 24 mm
• No-load speed - 14.000 rpm
• Length - 296,0 mm
• Width - 169,0 mm
• Height - 173,0 mm
• Planing width - 82 mm

FUNCTIONS
• Constant Electronic
• Dust extraction

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 5.5 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 85 dB(A); Sound power level 96 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
