IMPORTANT DATA
• Rated power input - 710 W
• Planing width - 82 mm
• Adjustable chip thickness - 0 – 2,6 mm

Part no. 0601594341 (110V version) 0601594342 (240V version)

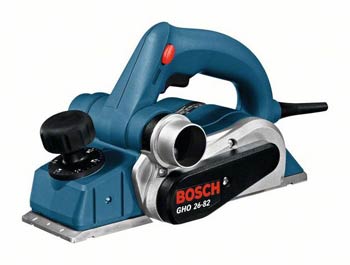

The handy planer with lots of power
• Small, handy machine with powerful 710-watt motor for all on-site fitting work
• The fastest and least expensive blade changes on the market due to durable Woodrazor blades and the easiest possible adjustment
• Comfortable working due to chip clearance to left or right, as desired
• 3 V-grooves for easy and flexible chamfering
• Workpiece is protected thanks to parking rest
• Lock-off switch for left-handers and right-handers

COMPLETE WITH
• Additional blade - 2 608 635 376
• Carrying case - 2 605 438 567
• Dust bag - 2 605 411 035
• Parallel guide - 2 607 000 102

TECHNICAL DATA
• Rated power input - 710 W
• Adjustable chip thickness - 0 – 2,6 mm
• Weight - 2,6 kg
• Adjustable rebating depth - 0 – 9 mm
• No-load speed - 16.500 rpm
• Length - 284,0 mm
• Width - 163,0 mm
• Height - 173,0 mm
• Planing width - 82 mm

FUNCTIONS
• Dust extraction

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 7.8 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 84 dB(A); Sound power level 95 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
