IMPORTANT DATA
• Battery voltage - 18 V
• Torque, max. (hard screwdriving applications) - 180 Nm
• Screw diameter - M 6 – M 16

Part no. 06019A1S01

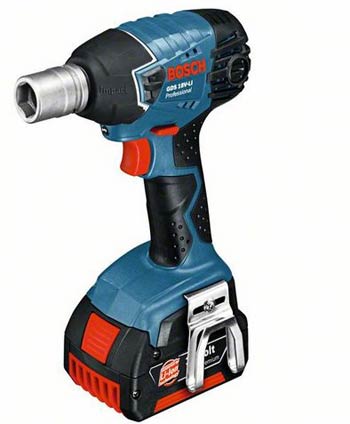

The first 18-volt impact wrench with flexible battery system
Unique choice between the “Premium” (longer battery runtime) and “Compact” (less weight for even more comfortable work) batteries
High torque and high impact rate (3,200 bpm) for fast work progress when driving screws in metal (up to M 16) and wood
Very short design for perfect handling, even in the tightest spaces and overhead
Unique Bosch Premium lithium-ion technology for unbeatable battery runtime
Bosch Electronic Cell Protection (ECP): protects the battery against overload, overheating and total discharge
Practical battery charge level indicator constantly shows how much energy is left in the battery

COMPLETE WITH
• Solo Version

TECHNICAL DATA
• Battery capacity - 3,0 Ah
• No-load speed - 0 – 2.800 rpm
• Charging time - 30 mins
• Weight incl. Battery - 1,7 kg
• Torque, max. (hard screwdriving applications) - 180 Nm
• Rated impact rate - 0 – 3.200 bpm
• Length - 152,0 mm
• Height - 241,0 mm
• Battery voltage - 18 V
• Toolholder - 1/2" external square

FUNCTIONS
• Forward/reverse operation
• Electronic
• Softgrip

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Tightening screws and nuts of maximum permitted size
• Vibration emission value ah - 12.0 m/s²
• Uncertainty K - 1.5 m/s²
