IMPORTANT DATA
• Battery voltage - 14,4 V
• Torque, max. (hard screwdriving applications) - 170 Nm
• Screw diameter - M 6 – M 16

Part no. 06019A1T01

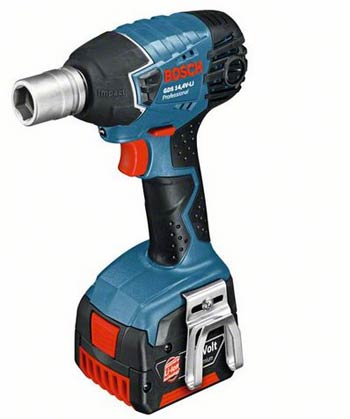

The first 14.4-volt impact wrench with flexible battery system
• Unique choice between the “Premium” (longer battery runtime) and “Compact” (less weight for even more comfortable work) batteries
• High torque and high impact rate (3,200 bpm) for fast work progress when driving screws in metal (up to M 16) and wood
• Very short design for perfect handling, even in the tightest spaces and overhead
• Unique Bosch Premium lithium-ion technology for unbeatable battery runtime
• Bosch Electronic Cell Protection (ECP): protects the battery against overload, overheating and deep discharge
• Extremely robust: fully functional, even after falling 2 m onto concrete, due to flexible Dura Shield housing
• Practical battery charge level indicator can be used at any time to find out how much energy is left in the battery

COMPLETE WITH
• Solo Version

TECHNICAL DATA
• Battery capacity - 3,0 Ah
• No-load speed - 0 – 2.800 rpm
• Charging time - 30 mins
• Weight incl. Battery - 1,6 kg
• Torque, max. (hard screwdriving applications) - 170 Nm
• Rated impact rate - 0 – 3.200 bpm
• Length - 152,0 mm
• Height - 241,0 mm
• Battery voltage - 14,4 V
• Toolholder - 1/2" external square

FUNCTIONS
• Forward/reverse operation
• Electronic
• Softgrip

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Tightening screws and nuts of maximum permitted size
• Vibration emission value ah - 12.0 m/s²
• Uncertainty K - 1.5 m/s²
