Bosch developed the first jigsaw – and has since reinvented it over and over again. Regardless of whether you need a tool for precise sawing at accurate angles or for robust use: Bosch offers professionals the right jigsaw for every application.

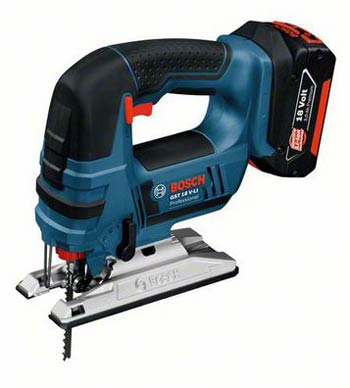

Li-Ion jigsaw in L-BOXX

IMPORTANT DATA
• Battery voltage - 18 V
• Cutting depth in wood - 90 mm
• Weight incl. Battery - 2,4 kg

Part no. 060158J370

The most compact 18 volt professional cordless jigsaw
• Extremely compact cordless jigsaw with the shortest length (only 260 mm) in its class for perfect handling and manoeuvrability in curves, even in tight spaces
• High performance: fast sawing progress and long battery runtime (e.g. 22 m in 22 mm chipboard) with 3.0 Ah battery
• Tool-free one-hand saw blade clamping system with saw blade ejection and park position for safe and quick saw blade changes
• Robust aluminium base plate with plastic sole for better glide properties and to protect sensitive surfaces
• Electronic Motor Protection (EMP) protects the motor against overload and ensures a long lifetime
• Unique Bosch Premium lithium-ion technology for longer lifetime and unbeatable battery runtime
• Bosch Electronic Cell Protection (ECP): protects the battery against overload, overheating and deep discharge
• Smallest grip circumference (only 128 mm) for comfortable and low-fatigue working
• Outstanding view of the cutting line thanks to bright LED and powerful dust blowing function
• Ergonomic bow handle with large softgrip coverings for comfortable working
• 4-stage pendulum action for tear-free cuts
• Continuously variable accelerator function is ideal for precise sawing starts and for plunge cuts

COMPLETE WITH
• 1 saw blade (T 123 X - Progressor for Metal)
• 1 saw blade (T 144 DP - Precision for Wood)
• 1 saw blade (T 244 D - Speed for Wood)
• 2 x 3.0 Ah Li-Ion batteries - 2 607 336 236
• AL 1860 CV quick charger - 2 607 225 324
• Anti-splinter guard - 2 601 016 096
• L-BOXX 136 - 2 608 438 692
• L-BOXX inlay for tool and charger - 2 608 438 027

TECHNICAL DATA
• No-load stroke rate - 2.700 spm
• Stroke height - 23 mm
• Slanted cuts - 0–45 °
• Weight incl. Battery - 2,4 kg
• Battery voltage - 18 V

FUNCTIONS
• One-hand SDS

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sawing sheet metal
• Vibration emission value ah - 8.5 m/sē
• Uncertainty K - 1.5 m/sē
Sawing wood
• Vibration emission value ah - 6.0 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 81 dB(A); Sound power level 92 dB(A). Uncertainty K= 3 dB.
