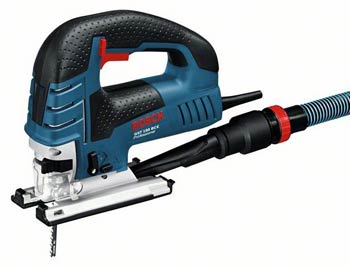

Bosch Jigsaw
GST 150 BCE Professional
Bosch developed the first jigsaw and has since reinvented it over and over again. Regardless of whether you need a tool for precise sawing at accurate angles or for robust use: Bosch offers professionals the right jigsaw for every application.
IMPORTANT DATA
Rated power input - 780 W
Cutting depth in wood - 150 mm
Cutting depth in aluminium - 20 mm
Part no. 0601513060 (110V version) 0601513070 (240V version)
The most powerful tool in its price class
High power reserves, even in hard and thick beams, due to powerful and overload-capable 780-watt motor
Extremely robust and bend-resistant sole plate for the toughest jobs
High cutting precision due to new saw blade clamping system
Tool-free saw blade clamping system for easy and fast saw blade changes
Ergonomic grip area with softgrip surfaces for a high level of work comfort
4-stage pendulum action for fine through to coarse cuts
Electronic speed preselection
COMPLETE WITH
1 saw blade T 144 DP (ET no. 2 609 991 569)
Anti-splinter guard - 2 601 016 096
Dust extraction set - 2 605 510 294
Glide shoe (ET no. 2 601 099 183)
Hood (ET no. 2 605 510 293)
Suction nozzle (ET no. 2 605 730 055)
TECHNICAL DATA
Rated power input - 780 W
No-load stroke rate - 500 3.100 spm
Weight - 2,7 kg
Cable length - 4 m
Stroke height - 26 mm
Cutting depth in wood - 150 mm
Cutting depth in aluminium - 20 mm
Cutting depth in non-alloyed steel - 10 mm
FUNCTIONS
Pendulum stroke adjustment
Dust extraction
Bosch SDS System
Electronic
Constant Electronic
Pendulum stroke adjustment
Dust extraction
Bosch SDS System
Electronic
Constant Electronic
NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sawing sheet metal
Vibration emission value ah - 4.0 m/sē
Uncertainty K - 1.5 m/sē
Sawing wood
Vibration emission value ah - 7.0 m/sē
Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 83 dB(A); Sound power level 94 dB(A). Uncertainty K= 3 dB.
PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
|
