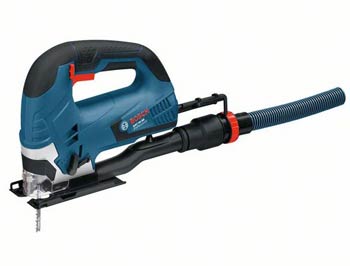

Bosch developed the first jigsaw – and has since reinvented it over and over again. Regardless of whether you need a tool for precise sawing at accurate angles or for robust use: Bosch offers professionals the right jigsaw for every application.

IMPORTANT DATA
• Rated power input - 650 W
• Cutting depth in wood - 90 mm
• Cutting depth in aluminium - 20 mm

Part no. 060158F060 (110V version) 060158F070 (240V version)

Top-class convenience in the entry level class
• The reliable partner for day-to-day use
• High level of convenience with Bosch SDS for easy, tool-free saw blade changes
• Powerful 650 watt motor for fast work progress
• Improved saw blade clamping system for high cutting precision
• Bend-resistant steel base plate
• Exemplary smooth running when cutting, which ensures best results and low user fatigue
• 4-stage pendulum action for tear-free cuts
• Electronic control for material-specific work
• Dust blowing function enables a clear view, and can be switched off for effective dust extraction

COMPLETE WITH
• 3 saw blades T 144 DP (ET no. 2 609 991 424)
• Allen key WAF 5 (ET no. 1 907 950 006)
• Anti-splinter guard (ET no. 2 601 016 065)
• Carrying case - 1 619 P07 164
• Dust extraction set - 1 619 P07 167

TECHNICAL DATA
• Rated power input - 650 W
• No-load stroke rate - 500 – 3.100 spm
• Weight - 2,6 kg
• Cable length - 2,5 m
• Stroke height - 26 mm
• Cutting depth in wood - 90 mm
• Cutting depth in aluminium - 20 mm
• Cutting depth in non-alloyed steel - 10 mm

FUNCTIONS
• Pendulum stroke adjustment
• Dust extraction
• Bosch SDS System
• Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sawing sheet metal
• Vibration emission value ah - 6.0 m/sē
• Uncertainty K - 1.5 m/sē
Sawing wood
• Vibration emission value ah - 6.0 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 84 dB(A); Sound power level 95 dB(A). Uncertainty K= 1,5 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
