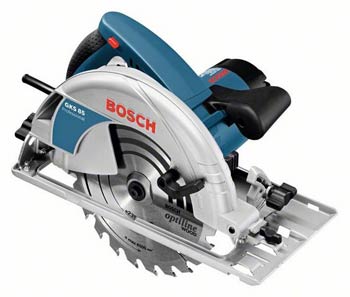

The powerful motor in a hand-held circular saw from Bosch can even take on the most demanding jobs in everyday construction site work. A Professional circular saw is a robust and durable tool that ensures fast work progress.

IMPORTANT DATA
• Rated power input - 1.700 W
• Saw blade diameter - 235 mm
• Cutting depth (90°) - 85 mm

Part no. 060157A060 (110V version)

High torque – even in wet wood
• Powerful 2200 W motor for high torque in solid wooden planks and wet beams – with cutting depths of up to 85 mm
• Even withstands impacts on the hardest ground thanks to the punched metal base plate and closed aluminium pendulum guard
• High overload capability for long lifetime of the motor, even under extreme load
• Dust-free view of the work space and score line thanks to optimised chip deflector and turbo blower
• Integrated rail guide in the base plate for accurate sawing with the guide rail

COMPLETE WITH
• Allen key WAF 5 (ET no. 1 907 950 006)
• Dust extraction adapter (ET no. 1 619 P01 627)
• Parallel guide - 1 608 190 007
• TC saw blade, 235 mm diameter - 2 608 640 725

TECHNICAL DATA
• Rated power input - 1.700 W
• No-load speed - 5.000 rpm
• Weight - 7,5 kg
• Saw blade bore diameter - 30,0 mm
• Saw blade diameter - 235 mm
• Cutting depth (90°) - 85 mm
• Cutting depth (45°) - 65 mm

FUNCTIONS
• Spindle lock
• Dust extraction
• Smooth start

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Vibration emission value ah - 3.5 m/sē
Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 99 dB(A); Sound power level 110 dB(A). Uncertainty K= 3 dB.
