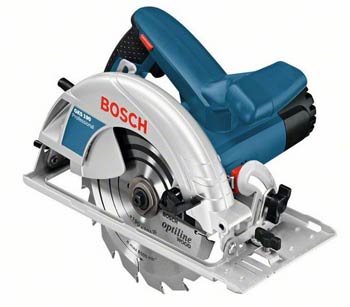

The powerful motor in a hand-held circular saw from Bosch can even take on the most demanding jobs in everyday construction site work. A Professional circular saw is a robust and durable tool that ensures fast work progress.

IMPORTANT DATA
• Rated power input - 1.400 W
• Saw blade diameter - 190 mm
• Cutting depth (90°) - 70 mm

Part no. 0601623060 (110V version) 0601623070 (240V version)

The most powerful tool in the entry level class
• With 1400 watts, it has the highest motor power in its class for fast sawing progress in soft and hard wood
• Highest cutting depth (70 mm) and bevel capability (56°) in its class for flexibility in any work situation
• Compact tool design for best handling
• Turbo blower for dust-free view of the cutting line
• Optimised wood chip deflector for better view of the work surface
• Robust closed aluminium die-cast pendulum guard

COMPLETE WITH
• Allen key WAF 5 (ET no. 1 907 950 006)
• Parallel guide - 1 608 190 007
• TC saw blade, 190 mm diameter - 2 608 641 184

TECHNICAL DATA
• Rated power input - 1.400 W
• No-load speed - 5.500 rpm
• Weight - 4,2 kg
• Saw blade bore diameter - 30,0 mm
• Saw blade diameter - 190 mm
• Cutting depth (90°) - 70 mm
• Cutting depth (45°) - 50 mm

FUNCTIONS
• Spindle lock
• Dust extraction

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 2.5 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 96 dB(A); Sound power level 107 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
