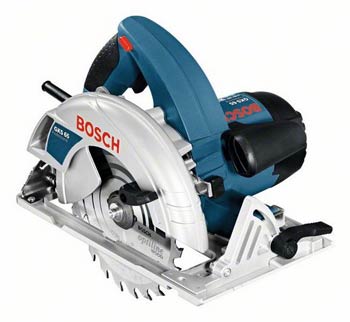

The powerful motor in a hand-held circular saw from Bosch can even take on the most demanding jobs in everyday construction site work. A Professional circular saw is a robust and durable tool that ensures fast work progress.

IMPORTANT DATA
• Rated power input - 1.600 W
• Saw blade diameter - 190 mm
• Cutting depth (90°) - 65 mm

Part no. 0601667060 (110V version) 0601667070 (240V version)

The powerful circular saw
• Powerful 1600-watt motor ensures high torque in any type of wood
• Punched aluminium base plate and closed pendulum guard made of die-cast aluminium can withstand even hard impacts
• Lowest weight in its class for optimum handling
• Optimised chip deflector and turbo blower for a clear view of the score line and precise cut guidance

COMPLETE WITH
• Allen key WAF 5 (ET no. 1 907 950 006)
• Dust extraction adapter (ET no. 2 610 925 244)
• Parallel guide - 1 608 190 007
• TC saw blade, 190 mm diameter - 2 608 641 184

TECHNICAL DATA
• Rated power input - 1.600 W
• No-load speed - 5.900 rpm
• Weight - 4,8 kg
• Saw blade bore diameter - 30,0 mm
• Saw blade diameter - 190 mm
• Cutting depth (90°) - 65 mm
• Cutting depth (45°) - 48 mm

FUNCTIONS
• Spindle lock
• Dust extraction

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Vibration emission value ah - 3.0 m/sē
Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
