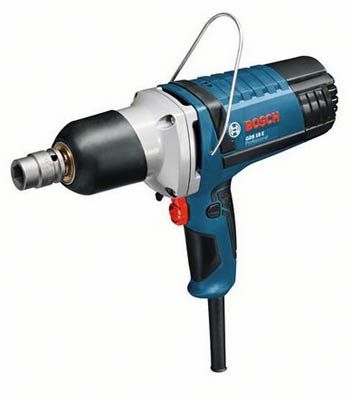

The impact wrenches from Bosch drive screws precisely – in series and individually. Thanks to their high torques, these impact wrenches therefore ensure fast work progress in vehicle assembly, shelf construction and other application ranges.

IMPORTANT DATA
• Rated power input - 500 W
• Screw diameter - M18
• Torque, max. (hard screwdriving applications) - 250 Nm

Part no. 0601444060 (110V version) 0601444070 (240V version)

The versatile tool for powerful screwdriving
• Ideal for wheel fitting on cars, scaffolding and shelf construction, in the workshop and in service centres and for direct screwdriving in concrete and wood
• Comfortable handling thanks to softgrip and favourable centre of gravity due to centre grip
• Exceptionally robust due to metal impact mechanism housing
• Precise operation due to speed preselection
• Forward/reverse rotation for tightening and loosening
• Easy-to-change accessories
• Practical hook for attaching

TECHNICAL DATA
• Rated power input - 500 W
• Torque, max. (hard screwdriving applications) - 250 Nm
• Torque, max. (soft screwdriving applications) - 160 Nm
• Toolholder - 1/2" external square
• Rated speed - 500 – 1.300 rpm
• Weight - 3,2 kg
• Length - 315 mm
• Height - 200 mm

FUNCTIONS
• Electronic
• Forward/reverse rotation

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Tightening screws and nuts of maximum permitted size
• Vibration emission value ah - 4.0 m/sē
• Uncertainty K - 0.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 108 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
