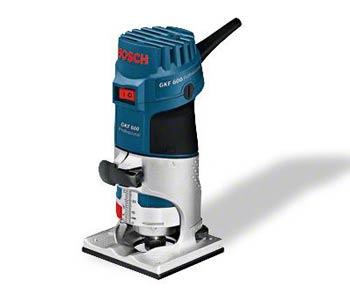

Due to its compact design and ergonomic grip area, the Bosch Palm Router guarantees perfect handling at the workplace. The rough and fine depth setting and the tight fitting of the motor block in the router cage make it an absolute precision tool.

IMPORTANT DATA
• Rated power input - 600 W
• No-load speed - 33.000 rpm
• Toolholder - 6 mm / 1/4"

Part no. 060160A160 (110V version) 060160A170 (240V version)

The handy specialist for edges
• Very compact design and ergonomic grip area allow for one-handed guidance, especially for working on edges
• Continuously variable routing depth adjustment using the setting wheel and tight fitting of the motor enable exact setting and repeatable precision
• Comprehensive range of accessories in a sturdy carrying case for the many requirements of working on edges
• Scale embossed in aluminium for accurate setting of the desired routing depth
• Fast tool changes due to spindle lock

COMPLETE WITH
• 1/4" collet with nut - 2 608 570 135
• Carrying case
• Open-ended spanner 17 mm (ET no. 2 609 110 438)
• Parallel guide - 2 608 000 331
• Pilot - 2 608 000 332

TECHNICAL DATA
• Rated power input - 600 W
• No-load speed - 33.000 rpm
• Weight - 1,5 kg
• Toolholder - 6 mm / 1/4"

FUNCTIONS
• Spindle lock

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 4.5 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 84 dB(A); Sound power level 95 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
