The routers from Bosch set standards in precision and are truly multi-talented tools: their applications range from exact groove, edge and copy routing through to benchtop work. All different kinds of materials can easily be processed with an extremely high level of convenience and precision.

IMPORTANT DATA
• Rated power input - 2.000 W
• No-load speed - 8.000 – 21.000 rpm
• Toolholder - 8 – 12,7 mm

Part no. 0601619741 (110V version) 0601619742 (240V version)

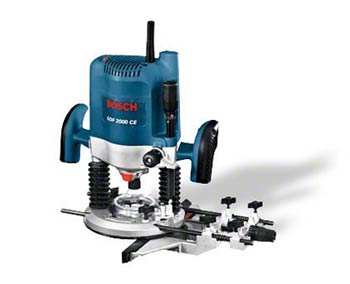

The robust precision plunge-cutting router
• Robust 2000-watt motor, which has sufficient power reserves for large routing diameters with its Constant Electronic
• Lockable setting wheels and clamp levers guarantee repeatable precision up to 1/10 mm accuracy
• The suspension of the plunge-cut function can be switched off for more convenient working at large routing depths and in bench-mounted use
• SDS system for tool-free fitting of template guides
• Exact centring of the base plate for working with template guides

COMPLETE WITH
• 12 mm collet with nut - 2 608 570 107
• Centring pin 12 mm - 2 609 200 311
• Dust extraction adapter - 2 608 190 039
• Open-ended spanner 24 mm (ET no. 2 610 992 417)
• Parallel guide with fine adjustment - 2 607 001 387
• Template guide 30 mm - 2 609 200 142

TECHNICAL DATA
• Toolholder - 8 – 12,7 mm
• No-load speed - 8.000 – 21.000 rpm
• Maximum router cage stroke - 65 mm
• Rated power input - 2.000 W
• Weight - 6,0 kg

FUNCTIONS
• Spindle lock
• Dust extraction
• Electronic
• Constant Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Vibration emission value ah 5.0 m/sē
Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 89 dB(A); Sound power level 100 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
