The routers from Bosch set standards in precision and are truly multi-talented tools: their applications range from exact groove, edge and copy routing through to benchtop work. All different kinds of materials can easily be processed with an extremely high level of convenience and precision.

IMPORTANT DATA
• Rated power input - 1.600 W
• No-load speed - 10.000 – 25.000 rpm
• Toolholder - 8 – 12,7 mm

Part no. 0601624060 (110V version) 0601624070 (240V version)

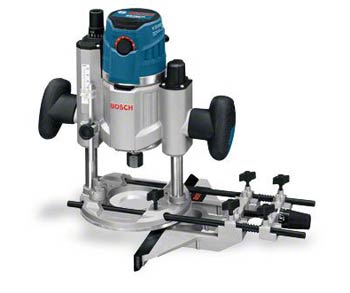

The powerful precision plunge-cutting router with LED illumination
• Powerful 1600-watt motor with Constant Electronic and Softstart for material-specific working
• LED illumination of the work surface for precise working, and transparent slide plate
• Patented fine adjustment for precise adjustment of the routing depth in 1/10-mm steps in the fixed plunge-cutting function
• Spindle lock and flat housing cover for fast router bit changes and easy adjustment work
• Reinforced column holder in the base plate for an absolutely precise plunge-cutting function

COMPLETE WITH
• 2 collets with nut 8 mm & 12 mm
• 2 template guides 17/30 mm
• Centring pin 8 mm/12 mm
• Dust extraction adapter for plunge router
• L-BOXX 374 - 2 608 438 694
• Open-ended spanner
• Parallel guide with fine adjustment
• Template guide adapter

TECHNICAL DATA
• Toolholder - 8 – 12,7 mm
• No-load speed - 10.000 – 25.000 rpm
• Maximum router cage stroke - 76 mm
• Rated power input - 1.600 W
• Weight - 5,8 kg

FUNCTIONS
• Spindle lock
• Dust extraction
• Electronic
• Constant Electronic
• Starting current limitation

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 5.5 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
