The routers from Bosch set standards in precision and are truly multi-talented tools: their applications range from exact groove, edge and copy routing through to benchtop work. All different kinds of materials can easily be processed with an extremely high level of convenience and precision

IMPORTANT DATA
• Rated power input - 900 W
• No-load speed - 12.000 – 24.000 rpm
• Toolholder - 6 – 8,0 mm

Part no. 0601614641 (110V version) 0601614642 (240V version)

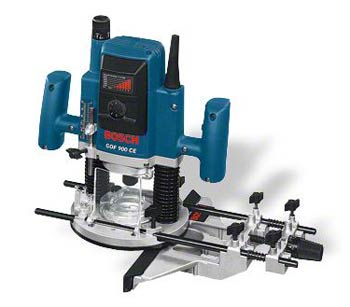

The compact precision plunge-cutting router
• Compact design with 900-watt motor and Constant Electronic for constant work progress
• Patented fine adjustment for precise adjustment of the routing depth in 1/10-mm steps in the fixed plunge-cutting function
• Speed preselection and smooth start for material-specific working
• SDS system for tool-free fitting of template guides
• Exact centring of the base plate for working with template guides

COMPLETE WITH
• 8 mm collet with nut - 2 608 570 102
• Centring pin 8 mm - 2 609 200 310
• Dust extraction adapter - 2 608 190 038
• Open-ended spanner 19 mm (ET no. 1 907 950 511)
• Parallel guide with fine adjustment - 2 607 001 387
• Template guide 17 mm - 2 609 200 139

TECHNICAL DATA
• Toolholder - 6 – 8,0 mm
• No-load speed - 12.000 – 24.000 rpm
• Maximum router cage stroke - 50 mm
• Rated power input - 900 W
• Weight - 3,5 kg

FUNCTIONS
• Spindle lock
• Dust extraction
• Constant Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 5.5 m/sē
• Uncertainty K - 2.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 89 dB(A); Sound power level 100 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
