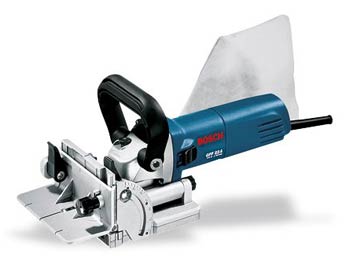

The Bosch Biscuit Jointer is ideal for precise routing of grooves for corner and edge joints with biscuit dowels – with precise, tool-free routing depth setting, angle guide with clearly legible scale and grid for even more accurate work

IMPORTANT DATA
• Rated power input - 670 W
• No-load speed - 9.000 rpm
• Cutting depth, max. - 22 mm

Part no. 0601620041 (110V version) 0601620042 (240V version)

The precise specialist tool for wood joints
• Robust metal angle guides with embossed scales and lock-in points enable precise settings for accurate joints
• 670 watts provide optimum power for making frame, corner, longitudinal and cross joints
• Tool-free routing depth adjustment for fast work progress
• Markings on the angle guide for precise positioning of the biscuit joint

COMPLETE WITH
• Attachment plate (ET no. 3 609 202 397)
• Carrying case - 3 605 438 031
• Dust bag - 3 605 411 003
• TC blade cutter - 3 608 641 013
• Two-hole spanner - 1 607 950 043

TECHNICAL DATA
• Cutting depth, max. - 22 mm
• No-load speed - 9.000 rpm
• Router bit diameter bore - 22,0 mm
• Router bit diameter - 105 mm
• Rated power input - 670 W
• Weight - 2,9 kg
• Length - 365 mm
• Height - 165 mm

FUNCTIONS
• Spindle lock
• Dust extraction

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah - 2.5 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 87 dB(A); Sound power level 98 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
