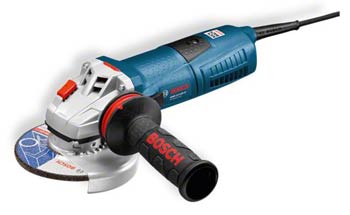

The small angle grinders are powerful, handy tools from Bosch for working on metal – the restart protection and KickBack Stop ensure safety

IMPORTANT DATA
• Rated power input - 1.200 W
• No-load speed - 11.500 rpm
• Disc diameter - 125 mm

Part no. 0601793067 (110V version) 0601793077 (240V version)

Maximum performance and a high level of user protection
• Fast work progress due to powerful 1200 watt motor with Constant Electronic
• Long lifetime due to motors with direct motor cooling, overload protection and long carbon brush lifetime
• Leading user protection due to KickBack Stop, restart protection, anti-rotation protective guard and vibration reduction
• Large spindle lock button for easy and fast accessory changes
• Good handling thanks to slim housing
• Vibration Control auxiliary handle with 40% vibration reduction for low-fatigue working (EN 60745)
• Soft start and starting current limitation
• Gear head can be rotated in 90° steps
• Handle can be used on right or left

COMPLETE WITH
• Backing flange (ET no. 2 605 703 014)
• Carrying case - 1 605 438 182
• Locking nut (ET no. 1 603 345 043)
• Protective guard - 1 605 510 356
• SDS quick-locking nut - 1 603 340 027
• Two-hole spanner (ET no. 1 607 950 052)
• Vibration Control auxiliary handle - 1 602 025 052

TECHNICAL DATA
• Rated power input - 1.200 W
• No-load speed - 11.500 rpm
• Power output - 640 W
• Grinding spindle thread - M14
• Disc diameter - 125 mm
• Rubber sanding plate, diameter - 125 mm
• Wire cup brush, diameter - 75 mm
• Length - 297 mm
• Height - 103 mm
• Weight - 2,3 kg

FUNCTIONS
• Starting current limitation
• Champion motor
• Constant Electronic
• Direct cooling
• KickBack Stop
• Smooth start
• Locking system
• Overload protection
• Anti-rotation protective guard
• Restart protection

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sanding with sanding sheet
• Vibration emission value ah - 2.0 m/sē
• Uncertainty K - 1.5 m/sē
Surface grinding (roughing)
• Vibration emission value ah - 6.0 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
