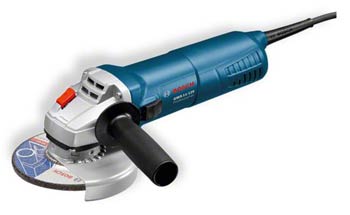

The small angle grinders are powerful, handy tools from Bosch for working on metal – the restart protection and KickBack Stop ensure safety

IMPORTANT DATA
• Rated power input - 1.100 W
• No-load speed - 11.500 rpm
• Disc diameter - 125 mm

Part no. 0601792060 (110V version) 0601792070 (240V version)

The most durable tool in its class
• Powerful 1100-watt motor for fast work progress
• High work efficiency due to long lifetime and carbon brush lifetime
• Ergonomic shape for maximum control in various grip positions
• Direct cooling for high overload capability and long lifetime
• Anti-rotation protective guard – quickly and easily adjustable, provides reliable protection
• Gear head can be rotated in 90° steps
• Handle can be used on right or left

COMPLETE WITH
• Auxiliary handle (ET no. 2 602 025 067)
• Backing flange (ET no. 2 605 703 014)
• Locking nut (ET no. 1 603 345 043)
• Protective guard - 1 605 510 356
• Two-hole spanner (ET no. 1 607 950 052)

TECHNICAL DATA
• Rated power input - 1.100 W
• No-load speed - 11.500 rpm
• Power output - 740 W
• Grinding spindle thread - M14
• Disc diameter - 125 mm
• Rubber sanding plate, diameter - 125 mm
• Wire cup brush, diameter - 75 mm
• Length - 303 mm
• Height - 102 mm
• Weight - 2,3 kg

FUNCTIONS
• Champion motor
• Direct cooling
• Locking system
• Anti-rotation protective guard

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sanding with sanding sheet
• Vibration emission value ah- 2.0 m/sē
• Uncertainty K- 1.5 m/sē
Surface grinding (roughing)
• Vibration emission value ah - 5.0 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.


PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
