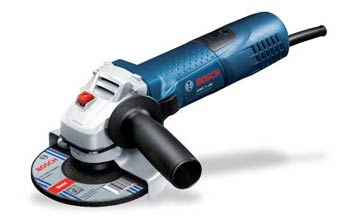

The small angle grinders are powerful, handy tools from Bosch for working on metal – the restart protection and KickBack Stop ensure safety

IMPORTANT DATA
• Rated power input - 720 W
• No-load speed - 11.000 rpm
• Disc diameter - 100 mm

Part no. 0601388160 (110V version) 0601388170 (240V version)

Smallest grip circumference and a powerful 720 watts
• Smallest grip circumference (176 mm) compared to other angle grinders in its wattage class for particularly comfortable working
• Powerful 720-watt motor and a weight of only 1.9 kg for continuous use
• Flat gear head for convenient working, even in tight spaces
• Specially developed air inlets ensure optimum motor cooling for a longer lifetime
• Anti-rotation protective guard for a high level of user protection
• Bosch safety switch ensures controlled switching-on of the machine – for greater user protection

COMPLETE WITH
• Auxiliary handle - 1 602 025 024
• Backing flange - 2 605 703 030
• Locking nut - 2 603 340 018
• Protective guard - 1 619 P06 546
• Two-hole spanner - 1 607 950 040

TECHNICAL DATA
• Rated power input - 720 W
• No-load speed - 11.000 rpm
• Grinding spindle thread - M10
• Disc diameter - 100 mm
• Rubber sanding plate, diameter - 100 mm
• Wire cup brush, diameter - 70 mm
• Weight - 1,8 kg

FUNCTIONS
• Champion motor
• Direct cooling
• Anti-rotation protective guard

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sanding with sanding sheet
• Vibration emission value ah- 3.5 m/sē
• Uncertainty K - 1.5 m/sē
Surface grinding (roughing)
• Vibration emission value ah - 6.5 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 91 dB(A); Sound power level 102 dB(A). Uncertainty K= 3 dB.

PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
