IMPORTANT DATA
• Rated power input - 701 W
• Self-drilling screw diameter - 6,0 mm
• Torque, max. (soft screwdriving applications) - 20 Nm

Part no. 0601445060 (110V version) 06014450P0 (240V version)

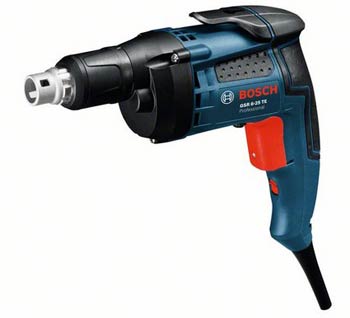

The powerful drywall screwdriver
• High torque enables powerful screwdriving
• Comfortable work due to ergonomic design and depth stop that can be operated with one hand
• Precise screwdriving to a constant depth due to exact shut-off clutch
• High power reserves thanks to powerful 701 watt high-performance motor
• Wide electronic switch with locking button for continuous operation
• Forward/reverse rotation
• Special depth stop with greater opening width for use with hex screws
• Practical belt clip for hanging up the tool
• Standardised toolholder for using conventional 1/4" bits
• Designed for use with MA 55 collated screwgun attachment

COMPLETE WITH
• Belt clip
• Carrying case - 2 605 438 620
• Depth stop - 2 607 002 585
• Depth stop - 2 607 002 586
• Magnetic universal holder - 2 607 000 157
• Screwdriver bit (bit) PH 2

TECHNICAL DATA
• Rated power input - 701 W
• Torque, max. (soft screwdriving applications) - 20 Nm
• Toolholder - 1/4" internal hexagon
• Power output - 327 W
• No-load speed - 0 – 2.500 rpm
• Weight - 1,5 kg
• Length - 295 mm
• Height - 207 mm
• Rated torque - 2,3 Nm

FUNCTIONS
• Electronic
• Forward/reverse operation

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Screwdriving
• Vibration emission value ah - 2.5 m/sē
• Uncertainty K - 1.5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 81 dB(A); Sound power level 92 dB(A). Uncertainty K= 3 dB.

PLEASE STIPULATE ON ORDER IF YOU REQUIRE 240V OR 110V MACHINE
