Bosch Rotary Hammers for powerful hammering in concrete and masonry, chiselling and drilling. The concentrated power of the rotary hammers from Bosch enables you to drill into even the toughest of materials quickly and easily – regardless of the feed pressure.

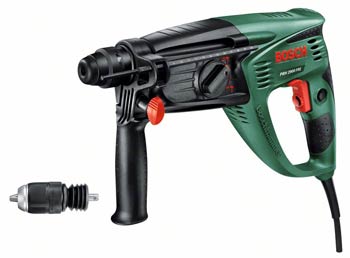

The Bosch Hammer PBH 2900 FRE – powerful hammering in concrete and masonry, chiselling, drilling and screwdriving with extreme power of 730 watts. Pneumatic Bosch hammer mechanism with an impact energy of 2.7 joules for extremely high impact force in hard materials regardless of the feed pressure. Bosch SDS adapter drill chuck for normal straight-shank drill bits.

Part no. 0 603 393 170

• Ergonomic slimline design with softgrip for fatigue-free working
• Integrated chisel function with Vario-Lock – freely selectable work position of the chisel
• Bosch SDS-plus toolholder – fast and tool-free bit changing and optimum power transfer
• Impact stop for drilling in metal and wood
• Bosch Electronic: speed control using the trigger switch and setting wheel – for material-specific working

COMPLETE WITH
• Bosch SDS adapter chuck (1 618 571 033)
• Auxiliary handle (2 602 025 125)
• Depth stop (2 603 001 009)
• Flat chisel (1 618 600 014)
• Plastic case (2 605 438 434)
• Voltage 230 V

TECHNICAL DATA
• Power input 730 W
• No-load speed 0 – 1.450 rpm
• Impact rate 0 – 4.000 rpm
• Single impact force 2,7 J
• Bosch Hammer Mechanism - pneumatic
• Machine weight 3,0 kg
• Max. drill diameter in concrete 26 mm
• Max. drill diameter in steel 13 mm
• Max. drill diameter in wood 30 mm
• With core cutters in masonry 68 mm

FUNCTIONS
• Rotation Stop
• Speed preselection
• Bosch Electronic
• Chisel function
• Forward/reverse rotation
• Bosch SDS-plus
• Softgrip
• Application: screwdriving / drilling / hammer drilling

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Hammer drilling in concrete
• Vibration emission value ah 16,0 m/sē
• Uncertainty K 1,5 m/sē
Chiselling
• Vibration emission value ah 14,0 m/sē
• Uncertainty K 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 89 dB(A); Sound power level 100 dB(A). Uncertainty K= 2 dB.
