The routers from Bosch are versatile tools: their applications range from accurate groove, edge and profile routing through to long-hole and copy routing. They enable you to work on all different kinds of materials with maximum convenience and precision.

Powerful and precise for creative woodworking. Material-specific preselection of the speed due to Bosch Electronic with setting wheel and accelerator switch. Easy and fast router bit changes due to integrated spindle lock. Bosch SDS system enables easy, tool-free insertion of the template guide.

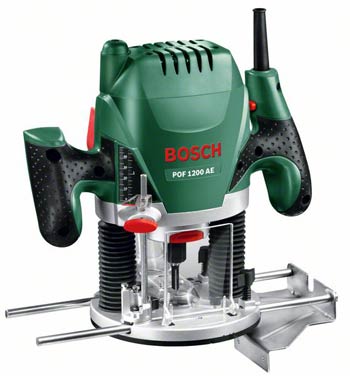

Part no. 0 603 26A 170

• Powerful 1200 watt motor for demanding tasks in all types of wood
• Dust extraction port – for dust-free working
• Transparent chip guard protects against flying chips
• Outstanding ergonomic design with softgrip for convenient and safe working

COMPLETE WITH
• Centring pin (2 609 200 310)
• Template guide (2 609 200 138)
• Straight bit (8 mm diameter) (2 608 628 381)
• Collets (3 pcs)
• Open-ended spanner (1 609 203 V40)
• Parallel guide (1 609 203 M85)
• Dust extraction adapter (2 600 499 077)

TECHNICAL DATA
• Voltage 230 V
• Power input 1.200 W
• Power output 650 W
• Toolholder (supplied) 6 mm, 8 mm and 1/4"
• No-load speed 11.000 – 28.000 rpm
• Maximum router cage stroke 55 mm
• Machine weight 3,4 kg

FUNCTIONS
• Speed preselection
• Spindle lock
• Bosch SDS for template guide
• Softgrip
• Bosch Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah 6,0 m/sē
• Uncertainty K 2,0 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
