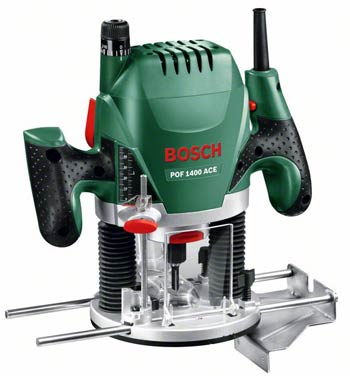

Bosch Router
POF 1400 ACE
The routers from Bosch are versatile tools: their applications range from accurate groove, edge and profile routing through to long-hole and copy routing. They enable you to work on all different kinds of materials with maximum convenience and precision.
Maximum power and precision for creative and convenient woodworking. The Bosch Constant Electronic keeps the selected speed constant at all times and ensures optimum cut quality. Routing dept fine adjustment ideal for demanding work, accurate to 1/10mm. Easy and fast router bit changes due to integrated spindle lock.
Part no. 0 603 26C 870
Powerful 1400 watt motor for demanding tasks in all types of wood
Bosch SDS system enables easy, tool-free insertion of the template guide
Integrated work light the workpiece is always well lit
Material-specific preselection of the speed due to Bosch Electronic with setting wheel and accelerator switch
Dust extraction port for dust-free working
Outstanding ergonomic design with softgrip for convenient and safe working
COMPLETE WITH
Centring pin (2 609 200 310)
Template guide (2 609 200 138)
Straight bit (8 mm diameter) (2 608 628 381)
Collets (3 pcs)
Open-ended spanner (1 609 203 V40)
Parallel guide (1 609 203 M85)
Dust extraction adapter (2 600 499 077)
Plastic case (2 605 438 643)
TECHNICAL DATA
Voltage 230 V
Power input 1.400 W
Power output 650 W
Toolholder (supplied) 6 mm, 8 mm and 1/4"
No-load speed 11.000 28.000 rpm
Maximum router cage stroke 55 mm
Machine weight 3,5 kg
FUNCTIONS
Speed preselection
Spindle lock
Bosch Constant Electronic
Routing depth fine adjustment
Bosch SDS for template guide
Softgrip
Integrated work light
Bosch Electronic
NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Vibration emission value ah 6,0 m/sē
Uncertainty K 2,0 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
|
