The planers from Bosch stand for fast and precise working with a high material removal rate and large planing width. They come as standard with a combined guidance and cutting depth adjustment handle for non-slip guidance and infinitely variable adjustment.

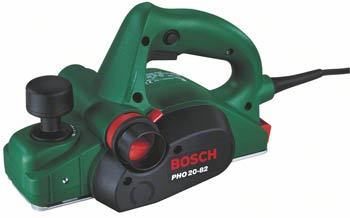

The PHO 20-82 is a compact and powerful 680 watt planer for demanding applications up to a cutting depth of 2 mm. Chip clearance on both sides for connecting to a dust bag or vacuum cleaner. Chips are ejected on the right or left depending on the work situation. Patented Woodrazor blade system – easy, effortless planing, the easiest and quickest possible blade changing and high surface quality.

Part no. 0 603 365 185

• Optimised chip clearance blower prevents chip congestion – for working without interruption
• V-grooves for precisely rounding off corners
• Automatically extending parking rest – prevents damage to the workpiece or planer blade when putting the planer down
• Rebating depth up to 8 mm
• Combined guide and planing depth adjustment knob provides secure guidance and infinitely variable adjustment

TECHNICAL DATA
• Voltage 230
• Cutting depth 0 – 2,0 mm
• Rebating depth 0 – 8 mm
• Power input 680 W
• Power output 320 W
• Planing width 82 mm
• No-load speed 19.500 rpm
• Machine weight 2,2 kg

FUNCTIONS
• Switch-on lock
• V-grooves
• Parking rest
• Chip clearance on both sides

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah 2,5 m/sē
• Uncertainty K 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 90 dB(A); Sound power level 101 dB(A). Uncertainty K= 3 dB.
