The mitre saws from Bosch are always the right choice thanks to their high precision: they saw wide panels and filigree picture frames alike at exactly the desired angle. The integrated slide function increases the possible cutting capacity, therefore providing a more versatile range of applications.

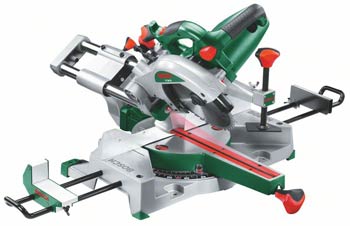

The PCM 8 S Mitre Saw with slide function is perfect for accurate sawing wide workpieces. Powerful 1200 watt motor for the toughest applications. Slide function with double clamp guide for working on wide workpieces. Cutting heights up to 70 mm and cutting widths up to 282 mm.

Part no. 0 603 B02 070

• Combination clamp for horizontal and vertical fixing of the workpiece with quick-action lock
• Adjustable laser beam and integrated work light – the perfect sawing aids for straight and precise cuts
• Two sturdy side extensions including support for long workpieces
• Depth stop for sawing slots
• High-quality aluminium construction
• Dust extraction port and complete with dust bag

COMPLETE WITH
• Tungsten carbide saw blade Optiline Wood (2 608 640 430)
• Combination clamp for securing workpieces
• Table extension

TECHNICAL DATA
• Power input 1.200 W
• No-load speed 5.200 rpm
• Circular saw blade nominal diameter 210 mm
• Circular saw blade bore diameter 30 mm
• Cutting capacity at 90°/90° 70 x 282 mm
• Cutting capacity at 45°/90° 70 x 200 mm
• Mitre adjustment 47 ° L / 53 ° R
• Incline setting 45 ° L
• Depth x length x height 57 x 77 x 41 cm
• Machine weight 18,6 kg

FUNCTIONS
• Softgrip
• Laser as a sawing aid
• Integrated work light
• Table extension
• Pull/slide function

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 111 dB(A). Uncertainty K= 3 dB.
