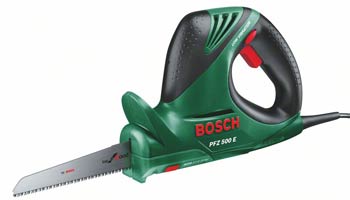

The fast, compact all-round saw for DIY enthusiasts
Powerful 500 watt motor and a stroke length of 23 mm ensure fast sawing progress in wood, plastic and metal. Maximum vibration damping and convenient working due to Bosch “Low Vibration” with linear mass balance. A light weight of only 2 kg.
Part no. 0 603 398 070

• With Bosch SDS system: fast and convenient saw blade changes Without tools and simply at the slide of a button
• Bosch Electronic stroke rate control: "accelerate" from 0 – max. using the trigger switch for material-specific working
• Integrated hand protector and softgrip for safe and convenient working
• Safety switch with switch-on lock that can be operated on both sides – prevents the machine being switched on unintentionally
• Regardless of whether you want to cut slats to length, saw branches, plastic or metal pipes, or saw flush to a wall: the PFZ 500 E gets the job done quickly

COMPLETE WITH
• Saw blade for wood (2 608 650 065)
• Saw blade for wood and metal (2 608 656 931)
• Plastic carrying case

TECHNICAL DATA
• Power input 500 W
• Power output 320 W
• Cut thickness in wood 150 mm
• Cut thickness in steel 10 mm
• Stroke rate 0 – 2.700 rpm
• Saw blade stroke 23 mm
• Machine weight 2,0 kg

FUNCTIONS
• Bosch Electronic
• Bosch SDS
• Switch-on lock
• Softgrip

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sawing wood
• Vibration emission value ah 8,0 m/s²
• Uncertainty K 2,0 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 88 dB(A); Sound power level 99 dB(A). Uncertainty K= 3 dB.
