The hand-held circular saws from Bosch are the ideal tools for precise rip and mitre cuts. With a maximum level of convenience and safety, they saw perfectly in solid wood, hard fibre boards, chipboard or wood core plywood and with Bosch Electronic also in aluminium and plastics.

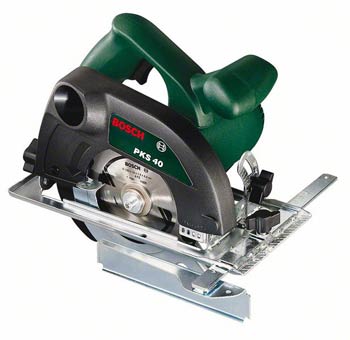

The PKS 40 is lightweight and compact for precise rip cuts by the metre. Powerful 600 watt motor and 40 mm cutting depth in wood. Exact cutting depth adjustment and accurate setting for mitre cuts. Particularly low weight and outstanding ergonomics for perfect guidance of the saw.

Part no. 0 603 328 042

• Safety switch with lock-off function that can be operated on both sides – prevents the machine being switched on unintentionally
• Dust extraction port – for dust-free working
• Equipped with high-quality Speedline Wood saw blade – the fastest blade on the market

COMPLETE WITH
• Tungsten carbide saw blade Speedline Wood (2 608 640 774)
• Parallel guide (2 608 005 018)

TECHNICAL DATA
• Power input 600 W
• Power output 350 W
• Circular saw blade nominal diameter 130 mm
• Circular saw blade bore diameter 16 mm
• No-load speed 4.200 rpm
• Guide plate 120 x 260 mm
• Protective guard - plastic
• Machine weight 2,4 kg
• Cutting depth range at 90° 0 – 40 mm
• Cutting depth range at 45° 0 – 26 mm

FUNCTIONS
• Speedline saw blade

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah 2,5 m/sē
• Uncertainty K 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 108 dB(A). Uncertainty K= 3 dB.
