The new jigsaw generation from Bosch enables you to saw tight curves and wavy lines more easily and precisely than ever before and without vibration. They come as standard with Bosch SDS for effortless and safe saw blade changes in seconds – without the need for additional tools.

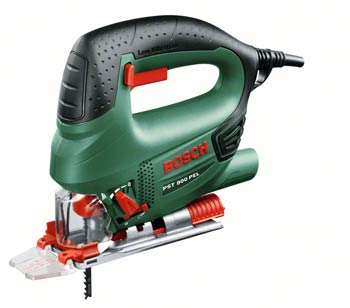

The Universal Jigsaw PST 800 PEL from Bosch – on a precision course – along the line with Cut Control. One machine – compact size, low weight and outstanding handling ensure perfect control and optimum user comfort. Optimum precision and control – the innovative Bosch CutControl enables you to easily and safely track the cutting line. Precision in every material due to the tried and tested Bosch Electronic: stroke rate control using the trigger switch for an easy sawing start and material-specific working.

Part no. 0 603 3A0 170

• Powerful 530 W motor and 80 mm cutting depth in wood – making even hard jobs easy
• 4-stage orbital pendulum action for faster sawing progress, better sawing of curves and longer lifetime of the saw blade
• Minimal vibration and safe and comfortable working due to Bosch “Low Vibration” with linear mass balance and ergonomic softgrip
• Bosch SDS ensures effortless and safe saw blade changes within seconds – without the need for additional tools
• Switchable air blast function ensures a clear view of the cutting line at all times
• Dust extraction port – for dust-free working
• Robust sole plate for steady guidance
• Up to 6 saw blades can be easily stored in the integrated saw blade storage compartment
• New cable guide with hanging hook for practical storage

COMPLETE WITH
• 1 saw blade T 144 D (2 608 630 040)**
• CutControl (2 609 256 981)
• Saw blade storage compartment (ET no. 2 608 040 231)
• Anti-splinter guard (2 607 010 079)**
• Transparent protective cover (ET no. 2 609 003 453)
• Plastic carrying case
• ** Further purchase only in set of 5

TECHNICAL DATA
• Voltage 230 V
• Power input 530 W
• Power output 290 W
• No-load stroke rate 500 – 3.000 rpm
• Sole plate - steel
• Machine weight 2,0 kg
• Cutting depth in wood 80 mm
• Cutting depth in steel 5 mm

FUNCTIONS
• Bosch SDS
• Bosch Low Vibration
• Bosch Electronic
• 4-stage pendulum action
• Bosch CutControl
• Dust blowing function
• Tool-Box
• Softgrip

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sawing wood
• Vibration emission value ah 13,0 m/s²
• Uncertainty K 3,0 m/s²
Sawing sheet metal
• Vibration emission value ah 7,0 m/s²
• Uncertainty K 1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 85 dB(A); Sound power level 96 dB(A). Uncertainty K= 3 dB.
