The impact drills from Bosch prove their worth with high-power performance and state-of-the-art technology. Their ergonomic slimline design makes the versatile Bosch Impact Drills both convenient and safe to handle for a full range of applications: impact drilling, standard drilling as well as screwdriving.

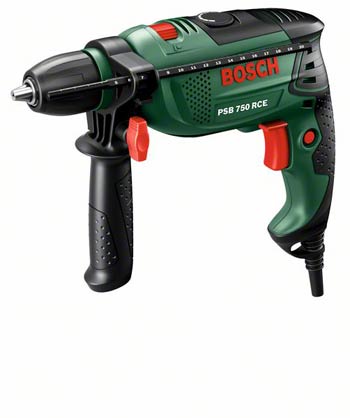

The Universal Impact Drill PSB 750 RCE from Bosch packs a real punch in every dimension. Endless possibilities – one machine – even the biggest diameters and the highest power requirements are no problem. Simultaneously offers a compact design with softgrip and a low weight. Powerful 750 W motor and 14 mm drilling diameter in concrete – making even hard jobs easy. With Bosch Constant Electronic the speed is automatically kept constant, even under load.

Part no. 0 603 128 570

• Bosch Electronic: speed preselection and control using setting wheel and trigger switch – for material-specific working and fingertip control of the power, e.g. when starting to drill in smooth surfaces and when driving screws
• Single-sleeve keyless chuck with Bosch Auto-Lock for the fastest and easiest tool changes
• Outstanding handling ensures perfect control and optimum user comfort
• Forward/reverse operation
• Convenient working due to integrated switch for continuous operation
• Dust extraction port – dust extraction available as an optional accessory
• Screwdriving/Drilling/Impact drilling function switch for material-specific working
• New cable guide with hanging hook for practical storage

COMPLETE WITH
• Auxiliary handle (2 609 255 727)

TECHNICAL DATA
• Voltage 230 V
• Power input 750 W
• Power output 400 W
• Max. torque 10,0 Nm
• No-load speed 50 – 3.000 rpm
• Impact rate 48.000 bpm
• Machine weight 1,8 kg
• Max. drill diameter in concrete 14 mm
• Max. drill diameter in steel 12 mm
• Max. drill diameter in wood 30 mm

FUNCTIONS
• Keyless chuck
• Bosch Auto-Lock
• Speed preselection
• Bosch Constant Electronic
• Forward/reverse rotation
• Bosch Electronic
• Softgrip
• Application: screwdriving / drilling / impact drilling
NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Drilling in metal
• Vibration emission value ah 5,0 m/sē
• Uncertainty K 1,5 m/sē
Impact drilling in concrete
• Vibration emission value ah 35,0 m/sē
• Uncertainty K 4,5 m/sē
Screwdriving
• Vibration emission value ah 2,5 m/sē
• Uncertainty K 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 100 dB(A); Sound power level 111 dB(A). Uncertainty K= 3 dB.
