Sawing, cutting, routing, sanding – the multi-function tools from Bosch offer countless possibilities for putting your ideas into practice.

Unbelievably versatile – sawing, cutting and sanding with one tool.

Multifunctional and precise due to oscillation function with powerful 180 watts. Toolholder with universal screw – fast and uncomplicated changing of all accessories with an Allen key. Bosch Electronic – continuously variable control of the oscillation speed using the setting wheel – to suit the material being worked on.

Part no. 0 603 100 072

• Accessories can be attached at different angles: for maximum accessibility in hard-to-reach areas and close to corners
• Softgrip, compact housing and optimum ergonomics for safe guidance and effortless working
• Dust extraction port – for dust-free working

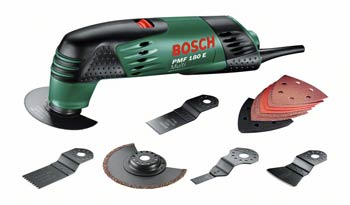

COMPLETE WITH
• BIM segment saw blade for wood and metal, 85 mm, ACZ 85 EB (2 609 256 943)
• HCS plunge-cutting saw blade for wood, 32 x 40 mm, AIZ 32 EC (2 609 256 947)
• Delta sanding sheet set, Wood, 93 mm (2 608 605 165)
• Delta sanding plate 93 mm, AVI 93 G (2 609 256 956)
• HM-RIFF segment saw blade, 85 mm, ACZ 85 RT (2 609 256 952)
• BIM plunge-cutting saw blade for metal, 10 x 20 mm, AIZ 10 AB (2 609 256 951)
• BIM plunge-cutting saw blade for hardwood, 32 x 40 mm, AIZ 32 BB (2 609 256 946)
• HCS rigid scraper, 52 x 26 mm, ATZ 52 SC (2 609 256 954)

TECHNICAL DATA
• Power input 180 W
• Power output 74 W
• No-load speed 15.000 – 21.000 rpm
• Oscillation angle left/right 1,4 °
• Weight 1,2 kg

FUNCTIONS
• Oscillation angle
• Bosch Electronic
• Speed preselection
• Softgrip
• In a set with additional accessories

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sanding
• Vibration emission value ah 6,4 m/sē
• Uncertainty K 2,0 m/sē
Sawing with plunge-cutting saw blade
• Vibration emission value ah 9,9 m/sē
• Uncertainty K 1,5 m/sē
Sawing with segment saw blade
• Vibration emission value ah 5,0 m/sē
• Uncertainty K 1,5 m/sē
Scraping
• Vibration emission value ah 11,4 m/sē
• Uncertainty K 2,2 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 85 dB(A); Sound power level 96 dB(A). Uncertainty K= 1,5 dB.
