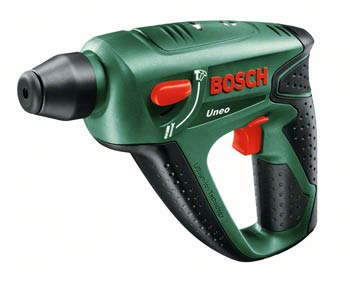

3 functions in one tool: hammering, drilling and screwdriving.

Hammering in concrete and masonry, drilling and screwdriving with pneumatic Bosch hammer mechanism with impact force of 0.5 joules. Comfortable working due to particularly handy size and a low working weight of 1.1 kg. Always ready for use thanks to 14.4 V lithium-ion battery technology.

Part no. 0 603 952 070

• Bosch SDS-Quick toolholder – fast and tool-free bit changing and optimum power transfer
• Additional hexagonal toolholder
• Impact stop for drilling in metal and wood and for screwdriving
• Bosch Electronic speed control: “accelerate” from 0 – max. using the trigger switch

COMPLETE WITH
• 3-hour charger
• Concrete drill bit, 6 and 8 mm diameter
• Universal drill bit, 5 and 6 mm diameter
• 4 long bits
• Plastic carrying case
TECHNICAL DATA
• Battery voltage 14,4 V
• Battery capacity 1,3 Ah
• Max. drill diameter in concrete 10 mm
• Max. drill diameter in steel 8 mm
• Max. drill diameter in wood 10 mm
• Max. number of drilling holes per battery charge (concrete) 25
• Max. number of drilling holes per battery charge (softwood) 70
• Max. number of screws per battery charge 100
• No-load speed 0 – 900 rpm
• Impact rate 0 – 4.800 rpm
• Single impact force 0,5 J
• Bosch Hammer Mechanism - pneumatic
• Machine weight 1,1 kg

FUNCTIONS
• 14.4 Volt
• Lithium-ion technology
• Pneumatic hammer mechanism
• SDS-Quick drill bit holder
• Softgrip
• Bosch Electronic

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Hammer drilling in concrete
• Vibration emission value ah 20,0 m/s²
• Uncertainty K 1,5 m/s²
Drilling in metal
• Vibration emission value ah 4,0 m/s²
• Uncertainty K 1,5 m/s²
Screwdriving
• Vibration emission value ah 2,5 m/s²
• Uncertainty K 1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 84 dB(A); Sound power level 95 dB(A). Uncertainty K= 3 dB.
