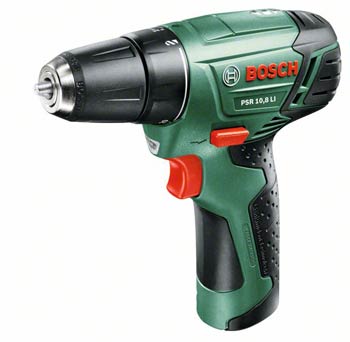

The most handy and convenient tool in its class with high power thanks to lithium-ion technology. No memory effect, no self-discharge: always ready for use thanks to lithium-ion technology. High performance planetary gearbox: superior lifetime, best power transfer, high running smoothness.

Part no. 0 603 954 270

• Intelligent 3-stage charge level indicator
• Bosch Electronic for speed control: “accelerate” from 0 – max. using the trigger switch
• Keyless chuck with Bosch Auto-Lock for the fastest and easiest bit changes
• PowerLight – thanks to the built-in LED, your workpiece is always well lit and clearly visible
• 20 pre-selectable torque settings plus a drill setting – optimum power for every application

COMPLETE WITH
• 3-hour lithium-ion charging station
• Battery pack (integrated)
• Double ended screwdriver bit
• Plastic carrying case
TECHNICAL DATA
• No-load speed 0 – 340 rpm
• Max. torque 25,0 Nm
• Max. torque for soft/hard screwdriving applications 10 / 25 Nm
• Torque settings 20 + 1
• Battery voltage 10,8 V
• Keyless chuck
• Machine weight with battery 0,90 kg
• Screw diameter up to 6 mm
• Drill diameter in steel 6 mm
• Drill diameter in wood 20 mm
FUNCTIONS
• 10.8 Volt
• Lithium-ion technology
• Bosch Electronic Cell Protection (ECP)
• Bosch Auto-Lock
• Application: screwdriving / drilling
• Softgrip
• Integrated work light
• Bosch Electronic
• Forward/reverse rotation
• Charge level indicator
• Forward/reverse indicator

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Screwdriving
• Vibration emission value ah 2,5 m/s²
• Uncertainty K 1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 69 dB(A); Sound power level 80 dB(A). Uncertainty K= 3 dB.
