The most handy and convenient tool in its class with high power thanks to lithium-ion technology. No memory effect, no self-discharge: always ready for use thanks to lithium-ion technology. Particularly long life of the replaceable lithium-ion battery packs due to Bosch Electronic Cell Protection (ECP)

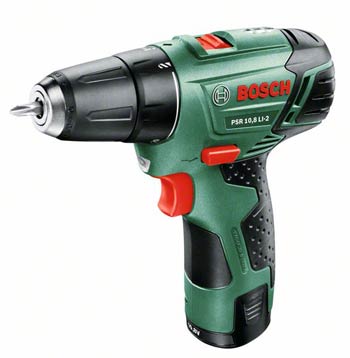

Part no. 0 603 972 970

• Intelligent 3-stage charge level indicator
• Bosch Electronic speed control: “accelerate” from 0 – max. using the trigger switch
• 2-speed high-performance planetary gearbox: superior lifetime, best power transfer, high running smoothness
• Keyless chuck with Bosch Auto-Lock for the fastest and easiest bit changes
• PowerLight – your workpiece is always well lit and clearly visible thanks to the built-in LED
• 20 pre-selectable torque settings plus a drill setting – optimum power for every application

COMPLETE WITH
• Battery pack (2 607 336 205)
• 1-hour charger (1 600 Z00 002)
• Double ended screwdriver bit
• Plastic carrying case

TECHNICAL DATA
• Idle speed (1st gear/2nd gear) 0 – 350 / 1.100 rpm
• Max. torque 22,0 Nm
• Max. torque for soft/hard screwdriving applications 11 / 22 Nm
• Torque settings 20 + 1
• Battery voltage 10,8 V
• Chucks - keyless chuck
• Machine weight with battery 0,95 kg
• Screw diameter up to 6 mm
• Drill diameter in steel 8 mm
• Drill diameter in wood 20 mm

FUNCTIONS
• 10.8 Volt
• Lithium-ion technology
• Bosch Electronic Cell Protection (ECP)
• Bosch Auto-Lock
• 2-speed gearbox
• Application: screwdriving / drilling
• Softgrip
• Integrated work light
• Bosch Electronic
• Forward/reverse rotation
• Charge level indicator
• Forward/reverse indicator

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Drilling in metal
• Vibration emission value ah 2,5 m/s²
• Uncertainty K 1,5 m/s²
Screwdriving
• Vibration emission value ah 2,5 m/s²
• Uncertainty K 1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 71 dB(A); Sound power level 82 dB(A). Uncertainty K= 1,5 dB.
