The hand-held circular saws from Bosch are the ideal tools for precise rip and mitre cuts. With a maximum level of convenience and safety, they saw perfectly in solid wood, hard fibre boards, chipboard or wood core plywood and with Bosch Electronic also in aluminium and plastics.

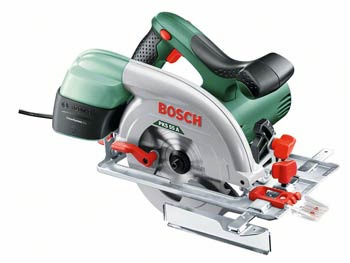

Full control for precision when performing straight cuts with the PKS 55 A. Powerful 1200 watt motor and 55 mm cutting depth in wood. Clean System Box for clean working. CutControl for controlled freehand cuts.

Part no. 0 603 501 072

• Ergonomic design with comfortable softgrip and low weight for perfect guidance of the saw
• Accurate cutting depth adjustment and precise adjustment for mitre cuts using the quick-clamping lever
• Easy and fast saw blade changes due to integrated spindle lock
• Safety switch with lock-off function that can be operated on both sides – prevents the machine being switched on unintentionally
• Equipped with high-quality Speedline Wood saw blade – the fastest blade on the market

COMPLETE WITH
• CleanSystem Box (2 609 255 731)
• Circular saw blade PRECISION (18 teeth) (2 609 256 855)
• Parallel guide (2 608 005 018)

TECHNICAL DATA
• Power input 1.200 W
• Circular saw blade nominal diameter 160 mm
• Circular saw blade bore diameter 20 mm
• No-load speed 5.600 rpm
• Guide plate 153 x 288 mm
• Protective guard – aluminium
• Machine weight 3,9 kg
• Cutting depth range at 90° 0 – 55 mm
• Cutting depth range at 45° 0 – 38 mm

FUNCTIONS
• Spindle lock
• Speedline saw blade
• Dust/chip box
• Bosch CutControl
• Softgrip
• Groove in sole plate for guide rail system

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
• Vibration emission value ah 2,5 m/sē
• Uncertainty K 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 103 dB(A). Uncertainty K= 3 dB.
