Bosch Multifunction Tool
PMF 190 E
Sawing, cutting, routing, sanding.... The multi-function tools from Bosch offer countless possibilities for putting your ideas into practice.
The versatile all-rounder PMF 190 E sawing, cutting, sanding and scraping even in hard-to-reach areas
IMPORTANT DATA
Power input - 190 W
No-load speed - 15.000 21.000 rpm
Oscillation angle left/right - 1,4 °
Part no. 0603100570
Bosch Electronic with continuously variable preselection of the oscillation rate for material-specific work
Oscillation: 15,000 21,000 oscillations per minute at 2.8 angular degrees
With 4-stage depth stop for limiting the depth of cut
Possibility to connect an all-purpose vacuum cleaner for dust-free sanding
Ergonomic design compact and easy-to-handle tool with small grip circumference

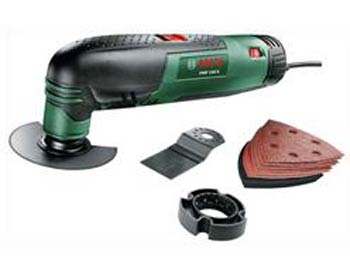

COMPLETE WITH
BIM segment saw blade for wood and metal, 85 mm, ACZ 85 EB (2 609 256 943)
Delta sanding sheet set, wood, 93 mm (2 609 256 070)
Delta sanding plate 93 mm, AVI 93 G (2 609 256 956)
HCS plunge-cutting saw blade for wood, 32 x 40 mm, AIZ 32 EC (2 609 256 947)
Allen key
Plastic carrying case
4-stage depth stop for segment saw blades (2 609 256 C61)
TECHNICAL DATA
Voltage - 230 V
Power input - 190 W
Power output - 89 W
No-load speed - 15.000 21.000 rpm
Oscillation angle left/right - 1,4 °
Weight - 1,2 kg
FUNCTIONS
Oscillation angle
Bosch Electronic
Softgrip
NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745
Total vibration values (vector sum of three directions)
Sanding
Vibration emission value ah - 3,5 m/sē
Uncertainty K - 1,5 m/sē
Sawing with plunge-cutting saw blade
Vibration emission value ah - 12,5 m/sē
Uncertainty K - 1,5 m/sē
Sawing with segment saw blade
Vibration emission value ah - 14,0 m/sē
Uncertainty K - 2,5 m/sē
Scraping
Vibration emission value ah - 12,0 m/sē
Uncertainty K - 1,5 m/sē
The A-rated noise level of the power tool is typically as follows: Sound pressure level 86 dB(A); Sound power level 97 dB(A). Uncertainty K= 3 dB.
|
