The impact drills from Bosch prove their worth with high-power performance and state-of-the-art technology. Their ergonomic slimline design makes the versatile Bosch Impact Drills both convenient and safe to handle for a full range of applications: impact drilling, standard drilling as well as screwdriving.

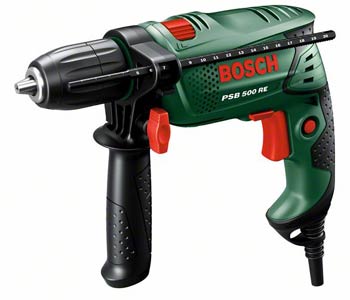

The easy impact drill PSB 500 RE - high in power, small in size

As easy as can be: compact design with softgrip, low weight (only 1.5 kg) and outstanding handling ensure optimum user comfort and maximum performance for every job. Powerful 500 W motor and 13 mm drilling diameter in concrete – making even hard jobs easy. Bosch Electronic speed control : “accelerate” from 0 – max. Using the trigger switch, which enables fingertip control of the power, e.g. when starting to drill in smooth surfaces and when driving screws.

IMPORTANT DATA
• Power input - 500 W
• Max. drill diameter in concrete - 10 mm
• Max. drill diameter in wood - 25 mm

Part no. 0603127070

• Twin-sleeve keyless chuck for fast and easy tool changes
• Forward/reverse operation
• Convenient working due to integrated switch for continuous operation
• Dust extraction port – dust extraction available as an optional accessory
• Screwdriving/Drilling/Impact drilling function switch for material-specific working
• New cable guide with hanging hook for practical storage

COMPLETE WITH
• Auxiliary handle (2 609 255 727)

TECHNICAL DATA
• Power input - 500 W
• Power output - 228 W
• Max. Torque - 7,5 Nm
• No-load speed - 50 – 3.000 rpm
• Impact rate - 33.000 bpm
• Machine weight - 1,6 kg
• Max. drill diameter in concrete - 10 mm
• Max. drill diameter in steel - 8 mm
• Max. drill diameter in wood - 25 mm

FUNCTIONS
• Keyless chuck
• Forward/reverse rotation
• Bosch Electronic
• Softgrip
• Application: screwdriving / drilling / impact drilling

NOISE/VIBRATION INFORMATION
Measured values determined according to EN 60745.
Total vibration values (vector sum of three directions)
Drilling in metal
• Vibration emission value ah - 4,0 m/s²
• Uncertainty K - 1,5 m/s²
Impact drilling in concrete
• Vibration emission value ah - 33,0 m/s²
• Uncertainty K - 3,5 m/s²
Screwdriving
• Vibration emission value ah - 2,5 m/s²
• Uncertainty K - 1,5 m/s²
The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 108 dB(A). Uncertainty K= 3 dB.
