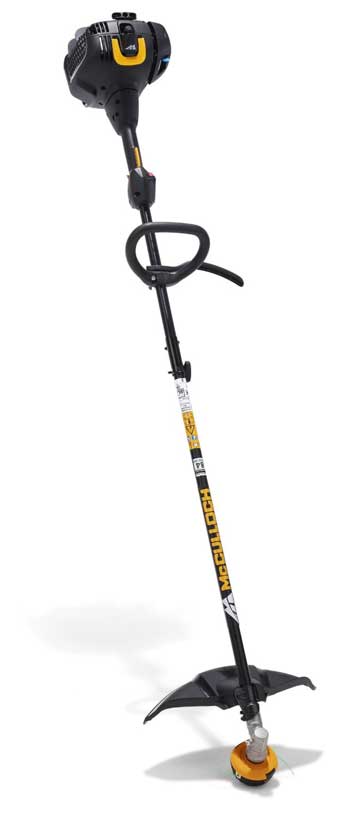

Easy to use brushcutter with many possibilities. Fully equipped with trimmer head, grass blade, as well as a single strap harness. The split shaft allows the brushcutter to be used with many different attachments. Easy to start with Soft Start and purge. The auto return stop switch makes the brushcutter always ready to start. Fast and precise cord feeding with the Tap ’n Go™ function.

SPECIFICATION
Engine specification
• Cylinder displacement 26.2 cm³ / 1.6 cu.inch
• Cylinder bore 35.8 mm / 1.41 inch
• Cylinder stroke 26 mm / 1.02 inch
• Power output 0.75 kW
• Maximum power speed 8500 rpm
• Maximum recommended engine speed 11800 rpm
• Carburettor RuiXin Carburettor Co.,Ltd.
• Fuel tank volume 0.55 lit / 18.6 fl oz
• Ignition system Digital CDI(Zhejiang haolong Electric Co.,Ltd.)
• Ignition module air gap 0.3 mm / 0.01 "
• Idling speed 3000 rpm
• Spark plug TORCH CMR7H
• Electrode gap 0.65 mm / 0.03 "
• RPM limiter Yes
• Torque, max. 0.96 Nm/6500 rpm
Equipment
• OEM Trimmer head P25 tap 'n go
• OEM Grass blade Grass 200-4
• OEM Harness Single harness
Transmission data
• Gear ratio 1.35:1
• Drive gear angle 30 °
Lubricants
• Lubricant type (bevel gear) Mineral grease
Vibration & noise data
• Equivalent vibration level (ahv, eq) left / right handle 6.045/7.297 m/s²
• Sound pressure level at operators ear 98.96 dB(A)
• Sound power level, guaranteed (LWA) 112 dB(A)
Overall dimensions
• Weight (excl. cutting equipment) 5.4 kg / 11.9 lbs
• Tube diameter 25.4 mm / 1 "

KEY FEATURES
• Soft Start
• Stop switch auto-resets for trouble-free start
• Versatile
• brushcutter blade
• Combination guard
• Tap 'n go trimmer head
• Standard harness for lighter brushcutters
• Two-piece split shaft
• Purge for easier starting
• Tool-less air filter cover
• Adjustable handle
• Clutch
